RECOM R1S-3.33.3/H-R DC/DC轉換器
發布時間：2025-05-22 08:41:26 瀏覽：584

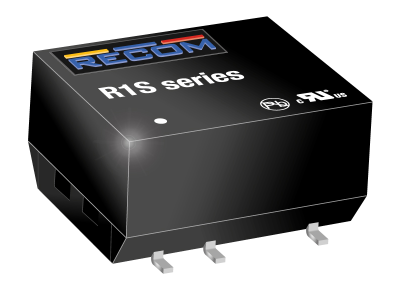

RECOM R1S系列是1W單輸出表面貼裝(SMD)DC/DC轉換器，用于通用和工業低功耗隔離及電壓匹配，適合需要SMD轉換器的場合。
電氣參數
輸入電壓：3.3V、5V、12V、15V、24V。
輸出電壓：3.3V、5V、9V、12V、15V、24V。
輸出電流：單輸出最大303mA(3.3V)到42mA(24V)
效率：最高84%。
隔離電壓：1kVDC/1s或3kVDC/1s可選。
隔離電阻：最小10GΩ。
隔離電容：15pF到75pF。
紋波和噪聲：50mVp-p到100mVp-p(20MHz帶寬)。
輸出精度：±2.0%(典型值)，±5.0%(最大值)。
封裝類型：SMD 5引腳、SMD 8引腳、SMD 12引腳。
尺寸：12.75×10.7×7.0mm(R1S、R1S8)，15.24×10.7×7.0mm(R1S12、R1D等)。
重量：1.0g到1.2g。
工作溫度：-40°C至+100°C。

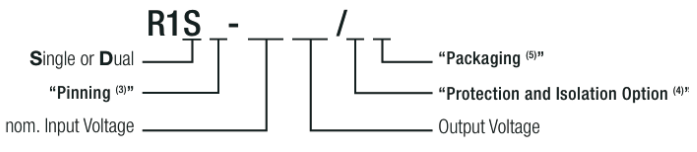

選型：
| 型號 | 功率
| 輸入電壓 | 輸出電壓 | 安裝類型 |
|---|
| R1S-0515 | 1 | 5 | 15 | SMD |
| R1S-0505 | 1 | 5 | 5 | SMD |
| R1S-0505/H | 1 | 5 | 5 | SMD |
| R1S-0505/HP | 1 | 5 | 5 | SMD |
| R1S-0505/HP-R | 1 | 5 | 5 | SMD |
| R1S-0505/H-R | 1 | 5 | 5 | SMD |
| R1S-1205 | 1 | 12 | 5 | SMD |
| R1S-3.305 | 1 | 3.3 | 5 | SMD |
| R1S-3.33.3 | 1 | 3.3 | 3.3 | SMD |
| R1S8-0505 | 1 | 5 | 5 | SMD |
| R1S-0505/P | 1 | 5 | 5 | SMD |
| R1S-0505/P-R | 1 | 5 | 5 | SMD |
| R1S-0505-R | 1 | 5 | 5 | SMD |
| R1S-0509 | 1 | 5 | 9 | SMD |
| R1S-0509/H | 1 | 5 | 9 | SMD |
| R1S-0509/HP | 1 | 5 | 9 | SMD |
| R1S-0509/HP-R | 1 | 5 | 9 | SMD |
| R1S-0509/H-R | 1 | 5 | 9 | SMD |
| R1S-0509/P | 1 | 5 | 9 | SMD |
| R1S-0509/P-R | 1 | 5 | 9 | SMD |
| R1S-0509-R | 1 | 5 | 9 | SMD |
| R1S-0512 | 1 | 5 | 12 | SMD |
| R1S-0512/H | 1 | 5 | 12 | SMD |
| R1S-0512/HP | 1 | 5 | 12 | SMD |
| R1S-0512/HP-R | 1 | 5 | 12 | SMD |
| R1S-0512/H-R | 1 | 5 | 12 | SMD |
| R1S-0512/P | 1 | 5 | 12 | SMD |
| R1S-0512/P-R | 1 | 5 | 12 | SMD |
| R1S-0512-R | 1 | 5 | 12 | SMD |
| R1S-0515/H | 1 | 5 | 15 | SMD |
| R1S-0515/HP | 1 | 5 | 15 | SMD |
| R1S-0515/HP-R | 1 | 5 | 15 | SMD |
| R1S-0515/H-R | 1 | 5 | 15 | SMD |
| R1S-0515/P | 1 | 5 | 15 | SMD |
| R1S-0515/P-R | 1 | 5 | 15 | SMD |
| R1S-0515-R | 1 | 5 | 15 | SMD |
| R1S-0524 | 1 | 5 | 24 | SMD |
| R1S-0524/H | 1 | 5 | 24 | SMD |
| R1S-0524/HP | 1 | 5 | 24 | SMD |
| R1S-0524/HP-R | 1 | 5 | 24 | SMD |
| R1S-0524/H-R | 1 | 5 | 24 | SMD |
| R1S-0524/P | 1 | 5 | 24 | SMD |
| R1S-0524/P-R | 1 | 5 | 24 | SMD |
| R1S-0524-R | 1 | 5 | 24 | SMD |
| R1S-053.3 | 1 | 5 | 3.3 | SMD |
| R1S-053.3/H | 1 | 5 | 3.3 | SMD |
| R1S-053.3/HP | 1 | 5 | 3.3 | SMD |
| R1S-053.3/HP-R | 1 | 5 | 3.3 | SMD |
| R1S-053.3/H-R | 1 | 5 | 3.3 | SMD |
| R1S-053.3/P | 1 | 5 | 3.3 | SMD |
| R1S-053.3/P-R | 1 | 5 | 3.3 | SMD |
| R1S-053.3-R | 1 | 5 | 3.3 | SMD |
| R1S-1205/H | 1 | 12 | 5 | SMD |
| R1S-1205/HP | 1 | 12 | 5 | SMD |
| R1S-1205/HP-R | 1 | 12 | 5 | SMD |
| R1S-1205/H-R | 1 | 12 | 5 | SMD |
| R1S-1205/P | 1 | 12 | 5 | SMD |
| R1S-1205/P-R | 1 | 12 | 5 | SMD |
| R1S12-0505 | 1 | 5 | 5 | SMD |
| R1S12-0505/H | 1 | 5 | 5 | SMD |
| R1S12-0505/HP | 1 | 5 | 5 | SMD |
| R1S12-0505/HP-R | 1 | 5 | 5 | SMD |
| R1S12-0505/H-R | 1 | 5 | 5 | SMD |
| R1S12-0505/P | 1 | 5 | 5 | SMD |
| R1S12-0505/P-R | 1 | 5 | 5 | SMD |
| R1S12-0505-R | 1 | 5 | 5 | SMD |
| R1S12-0509 | 1 | 5 | 9 | SMD |
| R1S12-0509/H | 1 | 5 | 9 | SMD |
| R1S12-0509/HP | 1 | 5 | 9 | SMD |
| R1S12-0509/HP-R | 1 | 5 | 9 | SMD |
| R1S12-0509/H-R | 1 | 5 | 9 | SMD |
| R1S12-0509/P | 1 | 5 | 9 | SMD |
| R1S12-0509/P-R | 1 | 5 | 9 | SMD |
| R1S12-0509-R | 1 | 5 | 9 | SMD |
| R1S12-0512 | 1 | 5 | 12 | SMD |
| R1S12-0512/H | 1 | 5 | 12 | SMD |
| R1S12-0512/HP | 1 | 5 | 12 | SMD |
| R1S12-0512/HP-R | 1 | 5 | 12 | SMD |
| R1S12-0512/H-R | 1 | 5 | 12 | SMD |
| R1S12-0512/P | 1 | 5 | 12 | SMD |
| R1S12-0512/P-R | 1 | 5 | 12 | SMD |
| R1S12-0512-R | 1 | 5 | 12 | SMD |
| R1S12-0515 | 1 | 5 | 15 | SMD |
| R1S12-0515/H | 1 | 5 | 15 | SMD |
| R1S12-0515/HP | 1 | 5 | 15 | SMD |
| R1S12-0515/HP-R | 1 | 5 | 15 | SMD |
| R1S12-0515/H-R | 1 | 5 | 15 | SMD |
| R1S12-0515/P | 1 | 5 | 15 | SMD |
| R1S12-0515/P-R | 1 | 5 | 15 | SMD |
| R1S12-0515-R | 1 | 5 | 15 | SMD |
| R1S12-0524 | 1 | 5 | 24 | SMD |
| R1S12-0524/H | 1 | 5 | 24 | SMD |
| R1S12-0524/HP | 1 | 5 | 24 | SMD |
| R1S12-0524/HP-R | 1 | 5 | 24 | SMD |
| R1S12-0524/H-R | 1 | 5 | 24 | SMD |
| R1S12-0524/P | 1 | 5 | 24 | SMD |
| R1S12-0524/P-R | 1 | 5 | 24 | SMD |
| R1S12-0524-R | 1 | 5 | 24 | SMD |
| R1S12-053.3 | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/H | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/HP | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/HP-R | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/H-R | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/P | 1 | 5 | 3.3 | SMD |
| R1S12-053.3/P-R | 1 | 5 | 3.3 | SMD |
| R1S12-053.3-R | 1 | 5 | 3.3 | SMD |
| R1S-1205-R | 1 | 12 | 5 | SMD |
| R1S-1209 | 1 | 12 | 9 | SMD |
| R1S-1209/H | 1 | 12 | 9 | SMD |
| R1S-1209/HP | 1 | 12 | 9 | SMD |
| R1S-1209/HP-R | 1 | 12 | 9 | SMD |
| R1S-1209/H-R | 1 | 12 | 9 | SMD |
| R1S-1209/P | 1 | 12 | 9 | SMD |
| R1S-1209/P-R | 1 | 12 | 9 | SMD |
| R1S-1209-R | 1 | 12 | 9 | SMD |
| R1S-1212 | 1 | 12 | 12 | SMD |
| R1S-1212/H | 1 | 12 | 12 | SMD |
| R1S-1212/HP | 1 | 12 | 12 | SMD |
| R1S-1212/HP-R | 1 | 12 | 12 | SMD |
| R1S-1212/H-R | 1 | 12 | 12 | SMD |
| R1S-1212/P | 1 | 12 | 12 | SMD |
| R1S-1212/P-R | 1 | 12 | 12 | SMD |
| R1S12-1205 | 1 | 12 | 5 | SMD |
| R1S12-1205/H | 1 | 12 | 5 | SMD |
| R1S12-1205/HP | 1 | 12 | 5 | SMD |
| R1S12-1205/HP-R | 1 | 12 | 5 | SMD |
| R1S12-1205/H-R | 1 | 12 | 5 | SMD |
| R1S12-1205/P | 1 | 12 | 5 | SMD |
| R1S12-1205/P-R | 1 | 12 | 5 | SMD |
| R1S12-1205-R | 1 | 12 | 5 | SMD |
| R1S12-1209 | 1 | 12 | 9 | SMD |
| R1S12-1209/H | 1 | 12 | 9 | SMD |
| R1S12-1209/HP | 1 | 12 | 9 | SMD |
| R1S12-1209/HP-R | 1 | 12 | 9 | SMD |
| R1S12-1209/H-R | 1 | 12 | 9 | SMD |
| R1S12-1209/P | 1 | 12 | 9 | SMD |
| R1S12-1209/P-R | 1 | 12 | 9 | SMD |
| R1S12-1209-R | 1 | 12 | 9 | SMD |
| R1S12-1212 | 1 | 12 | 12 | SMD |
| R1S12-1212/H | 1 | 12 | 12 | SMD |
| R1S12-1212/HP | 1 | 12 | 12 | SMD |
| R1S12-1212/HP-R | 1 | 12 | 12 | SMD |
| R1S12-1212/H-R | 1 | 12 | 12 | SMD |
| R1S12-1212/P | 1 | 12 | 12 | SMD |
| R1S12-1212/P-R | 1 | 12 | 12 | SMD |
| R1S12-1212-R | 1 | 12 | 12 | SMD |
| R1S12-1215 | 1 | 12 | 15 | SMD |
| R1S12-1215/H | 1 | 12 | 15 | SMD |
| R1S12-1215/HP | 1 | 12 | 15 | SMD |
| R1S12-1215/HP-R | 1 | 12 | 15 | SMD |
| R1S12-1215/H-R | 1 | 12 | 15 | SMD |
| R1S12-1215/P | 1 | 12 | 15 | SMD |
| R1S12-1215/P-R | 1 | 12 | 15 | SMD |
| R1S12-1215-R | 1 | 12 | 15 | SMD |
| R1S12-1224 | 1 | 12 | 24 | SMD |
| R1S12-1224/H | 1 | 12 | 24 | SMD |
| R1S12-1224/HP | 1 | 12 | 24 | SMD |
| R1S12-1224/HP-R | 1 | 12 | 24 | SMD |
| R1S12-1224/H-R | 1 | 12 | 24 | SMD |
| R1S12-1224/P | 1 | 12 | 24 | SMD |
| R1S12-1224/P-R | 1 | 12 | 24 | SMD |
| R1S12-1224-R | 1 | 12 | 24 | SMD |
| R1S12-123.3 | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/H | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/HP | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/HP-R | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/H-R | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/P | 1 | 12 | 3.3 | SMD |
| R1S12-123.3/P-R | 1 | 12 | 3.3 | SMD |
| R1S12-123.3-R | 1 | 12 | 3.3 | SMD |
| R1S-1212-R | 1 | 12 | 12 | SMD |
| R1S-1215 | 1 | 12 | 15 | SMD |
| R1S-1215/H | 1 | 12 | 15 | SMD |
| R1S-1215/HP | 1 | 12 | 15 | SMD |
| R1S-1215/HP-R | 1 | 12 | 15 | SMD |
| R1S-1215/H-R | 1 | 12 | 15 | SMD |
| R1S-1215/P | 1 | 12 | 15 | SMD |
| R1S-1215/P-R | 1 | 12 | 15 | SMD |
| R1S12-1505 | 1 | 15 | 5 | SMD |
| R1S12-1505/H | 1 | 15 | 5 | SMD |
| R1S12-1505/HP | 1 | 15 | 5 | SMD |
| R1S12-1505/HP-R | 1 | 15 | 5 | SMD |
| R1S12-1505/H-R | 1 | 15 | 5 | SMD |
| R1S12-1505/P | 1 | 15 | 5 | SMD |
| R1S12-1505/P-R | 1 | 15 | 5 | SMD |
| R1S12-1505-R | 1 | 15 | 5 | SMD |
| R1S12-1509 | 1 | 15 | 9 | SMD |
| R1S12-1509/H | 1 | 15 | 9 | SMD |
| R1S12-1509/HP | 1 | 15 | 9 | SMD |
| R1S12-1509/HP-R | 1 | 15 | 9 | SMD |
| R1S12-1509/H-R | 1 | 15 | 9 | SMD |
| R1S12-1509/P | 1 | 15 | 9 | SMD |
| R1S12-1509/P-R | 1 | 15 | 9 | SMD |
| R1S12-1509-R | 1 | 15 | 9 | SMD |
| R1S12-1512 | 1 | 15 | 12 | SMD |
| R1S12-1512/H | 1 | 15 | 12 | SMD |
| R1S12-1512/HP | 1 | 15 | 12 | SMD |
| R1S12-1512/HP-R | 1 | 15 | 12 | SMD |
| R1S12-1512/H-R | 1 | 15 | 12 | SMD |
| R1S12-1512/P | 1 | 15 | 12 | SMD |
深圳市立維創展科技有限公司，專注于RECOM電源模塊產品，并提供替代產品，詳情可咨詢立維創展。
